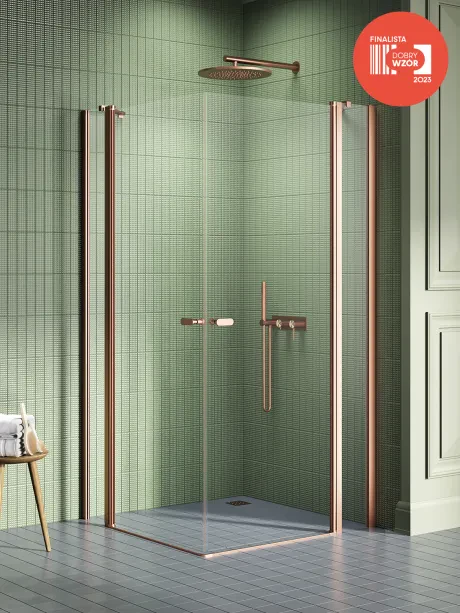

New Soleo Copper Brushed Shower Enclosure, double doors, with additional side panels

Shower enclosures

The New Soleo Copper Brushed model features elegant copper details with a brushed finish. The shower enclosures are equipped with safe, 6-mm-thick tempered glass featuring an Active Shield 2.0 protective coating. They feature a column hinge that allows the door to swing outward or inward. The product can be installed with or without a shower pan. The collection comes with a 3-year warranty. The product is also available in custom sizes.

Available in colors

Black - Matt
Gold - Brushed
Gold - Shine
Gunmetal - Brushed
Chrome - Shine

Warranty
Available in custom option
Threshold installation
Type of protective coating
Glass thickness [mm]
Product orientation

Open doors method

Product table

			A	B	C	D	E	F	W	X1	X2
K-4384	80x80x195	U	78.2-79.7	78.5-79.7	24.5	24.5	52	52	73	77.2-78.7	77.2-78.7
K-4385	80x90x195	U	78.2-79.7	88.5-89.7	24.5	26.5	52	60	79	77.2-78.7	87.2-88.7
K-4386	80x100x195	U	78.2-79.7	98.5-99.7	24.5	26.5	52	70	87	77.2-78.7	97.2-98.7
K-4387	80x110x195	U	78.2-79.7	108.5-109.7	24.5	36.5	52	70	87	77.2-78.7	107.2-108.7
K-4388	80x120x195	U	78.2-79.7	118.5-119.7	24.5	46.5	52	70	87	77.2-78.7	117.2-118.7
K-2017	90x90x195	U	88,2-89,7	88,2-89,7	26,5	26,5	60	60	85	87,2-88,7	87,2-88,7
F-K-2017	90x90x195	U	87-88.5	87-88.5	26.5	26.5	57.5	57.5	81	86-87.5	86-87.5
K-2018	90x100x195	U	88,2-89,7	98,2-99,7	26,5	26,5	60	70	92	87,2-88,7	97,2-98,7
F-K-2018	90x100x195	U	87-88.5	97-98.5	26.5	26.5	57.5	67.5	88	86-87.5	96-97.5
K-2019	90x110x195	U	88,2-89,7	108,2-109,7	26,5	36,5	60	70	92	87,2-88,7	107,2-108,7
F-K-2019	90x110x195	U	87-88.5	107-108.5	26.5	36.5	57.5	67.5	88	86-87.5	106-107.5
K-2020	90x120x195	U	88,2-89,7	118,2-119,7	26,5	46,5	60	70	92	87,2-88,7	117,2-118,7
F-K-2020	90x120x195	U	87-88.5	117-118.5	26.5	46.5	57.5	67.5	88	86-87.5	116-117.5
K-2021	100x100x195	U	98,2-99,7	98,2-99,7	26,5	26,5	70	70	99	97,2-98,7	97,2-98,7
F-K-2021	100x100x195	U	97-98.5	97-98.5	26.5	26.5	67.5	67.5	95	96-97.5	96-97.5
K-2022	100x110x195	U	98,2-99,7	108,5-110	26,5	36,5	70	70	99	97,2-98,7	107,5-109
F-K-2022	100x110x195	U	97-98.5	107-108.5	26.5	36.5	67.5	67.5	95	96-97.5	106-107.5
K-2023	100x120x195	U	98,2-99,7	118,2-119,7	26,5	46,5	70	70	99	97,2-98,7	117,2-118,7
F-K-2023	100x120x195	U	97-98.5	117-118.5	26.5	46.5	67.5	67.5	95	96-97.5	116-117.5
K-2024	110x110x195	U	108,2-109,7	108,2-109,7	36,5	36,5	70	70	99	107,2-108,7	107,2-108,7
F-K-2024	110x110x195	U	107-108.5	107-108.5	36.5	36.5	67.5	67.5	95	106-107.5	106-107.5
K-2025	110x120x195	U	108,2-109,7	118,2-119,7	36,5	46,5	70	70	99	107,2-108,7	117,2-118,7
F-K-2025	110x120x195	U	107-108.5	117-118.5	36.5	46.5	67.5	67.5	95	106-107.5	116-117.5
K-2026	120x120x195	U	118,2-119,7	118,2-119,7	46,5	46,5	70	70	99	117,2-118,7	117,2-118,7
F-K-2026	120x120x195	U	117-118.5	117-118.5	46.5	46.5	67.5	67.5	95	116-117.5	116-117.5
