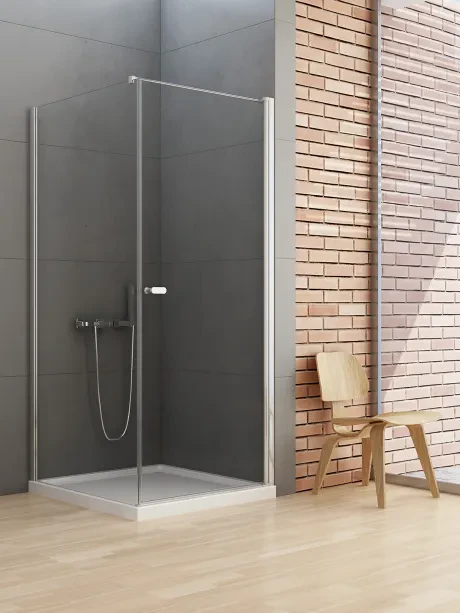

New Soleo shower enclosure, single door

Shower enclosures

The New Soleo model features elegant chrome details with a gloss finish. The shower enclosures, with a parallel support, feature 6mm-thick tempered safety glass with Active Shield 2.0 protective coating, and have a column hinge that allows the door to swing outward and inward. The product can be installed with or without a shower tray. The collection comes with a 3-year warranty period. It is also possible to order the product in a customized option..

Available in colors

Gold - Brushed
Gunmetal - Brushed
Copper - Brushed
Gold - Shine
Black - Matt

Warranty
Available in custom option
Threshold installation
Type of protective coating
Glass thickness [mm]
Product orientation

Open doors method

Product table

			A	B	W	X1	X2	C
D-0139A/D-0086B-WP	70x70x195	U	68.7-70.2	68.5-70	60	67.7-69.2	67.2-68.7
F-D-0139A/D-0086B-WP	70x70x195	U	67.3-68.8	66.9-68.4	58.5	66.3-67.8	65.6-67.1
D-0139A/D-0470B-WP	70x75x195	U	68.7-70.2	73.5-75	60	67.7-69.2	72.2-73.7
D-0139A/D-0087B-WP	70x80x195	U	68.7-70.2	78.5-80	60	67.7-69.2	77.2-78.7
F-D-0139A/D-0087B-WP	70x80x195	U	67.3-68.8	76.9-78.4	58.5	66.3-67.8	75.6-77.1
D-0139A/D-0088B-WP	70x90x195	U	68.7-70.2	88.5-90	60	67.7-69.2	87.2-88.7
F-D-0139A/D-0088B-WP	70x90x195	U	67.3-68.8	86.9-88.4	58.5	66.3-67.8	85.6-87.1
D-0139A/D-0089B-WP	70x100x195	U	68.7-70.2	98.5-100	60	67.7-69.2	97.2-98.7
F-D-0139A/D-0089B-WP	70x100x195	U	67.3-68.8	96.9-98.4	58.5	66.3-67.8	95.6-97.1
D-0139A/D-0150B-WP	70x110x195	U	68.7-70.2	108.5-110	60	67.7-69.2	107.2-108.7
F-D-0139A/D-0150B-WP	70x110x195	U	67.3-68.8	106.9-108.4	58.5	66.3-67.8	105.6-107.1
D-0139A/D-0151B-WP	70x120x195	U	68.7-70.2	118.5-120	60	67.7-69.2	117.2-118.7
D-0140A/D-0086B-WP	80x70x195	U	78.7-80.2	68.5-70	70	77.7-79.2	67.2-68.7
F-D-0140A/D-0086B-WP	80x70x195	U	77.3-78.8	66.9-68.4	68.5	76.3-77.8	65.6-67.1
D-0140A/D-0470B-WP	80x75x195	U	78.7-80.2	73.5-75	70	77.7-79.2	72.2-73.7
D-0140A/D-0087B-WP	80x80x195	U	78.7-80.2	78.5-80	70	77.7-79.2	77.2-78.7
F-D-0140A/D-0087B-WP	80x80x195	U	77.3-78.8	76.9-78.4	68.5	76.3-77.8	75.6-77.1
D-0140A/D-0088B-WP	80x90x195	U	78.7-80.2	88.5-90	70	77.7-79.2	87.2-88.7
F-D-0140A/D-0088B-WP	80x90x195	U	77.3-78.8	86.9-88.4	68.5	76.3-77.8	85.6-87.1
F-D-0140A/D-0089B-WP	80x100x195	U	77.3-78.8	96.9-98.4	68.5	76.3-77.8	95.6-97.1
D-0140A/D-0089B-WP	80x100x195	U	78.7-80.2	98.5-100	70	77.7-79.2	97.2-98.7
D-0140A/D-0150B-WP	80x110x195	U	78.7-80.2	108.5-110	70	77.7-79.2	107.2-108.7
F-D-0140A/D-0150B-WP	80x110x195	U	77.3-78.8	106.9-108.4	68.5	76.3-77.8	105.6-107.1
D-0140A/D-0151B-WP	80x120x195	U	78.7-80.2	118.5-120	70	77.7-79.2	117.2-118.7
D-0141A/D-0086B-WP	90x70x195	U	88.7-90.2	68.5-70	80	87.7-89.2	67.2-68.7
F-D-0141A/D-0086B-WP	90x70x195	U	87.3-88.8	66.9-68.4	78.5	86.3-87.8	65.6-67.1
D-0141A/D-0470B-WP	90x75x195	U	88.7-90.2	73.5-75	80	87.7-89.2	72.2-73.7	one
D-0141A/D-0087B-WP	90x80x195	U	88.7-90.2	78.5-80	80	87.7-89.2	77.2-78.7
F-D-0141A/D-0087B-WP	90x80x195	U	87.3-88.8	76.9-78.4	78.5	86.3-87.8	75.6-77.1
D-0141A/D-0088B-WP	90x90x195	U	88.7-90.2	88.5-90	80	87.7-89.2	87.2-88.7
F-D-0141A/D-0088B-WP	90x90x195	U	87.3-88.8	86.9-88.4	78.5	86.3-87.8	85.6-87.1
D-0141A/D-0089B-WP	90x100x195	U	88.7-90.2	98.5-100	80	87.7-89.2	97.2-98.7
F-D-0141A/D-0089B-WP	90x100x195	U	87.3-88.8	96.9-98.4	78.5	86.3-87.8	95.6-97.1
D-0141A/D-0150B-WP	90x110x195	U	88.7-90.2	108.5-110	80	87.7-89.2	107.2-108.7
F-D-0141A/D-0150B-WP	90x110x195	U	87.3-88.8	106.9-108.4	78.5	86.3-87.8	105.6-107.1
D-0141A/D-0151B-WP	90x120x195	U	88.7-90.2	118.5-120	80	87.7-89.2	117.2-118.7
F-D-0142A/D-0086B-WP	100x70x195	U	97.3-98.8	66.9-68.4	88.5	96.3-97.8	65.6-67.1
D-0142A/D-0086B-WP	100x70x195	U	98.7-100.2	68.5-70	90	97.7-99.2	67.2-68.7
D-0142A/D-0470B-WP	100x75x195	U	98.7-100.2	73.5-75	90	97.7-99.2	72.2-73.7
F-D-0142A/D-0087B-WP	100x80x195	U	97.3-98.8	76.9-78.4	88.5	96.3-97.8	75.6-77.1
D-0142A/D-0087B-WP	100x80x195	U	98.7-100.2	78.5-80	90	97.7-99.2	77.2-78.7
D-0142A/D-0088B-WP	100x90x195	U	98.7-100.2	88.5-90	90	97.7-99.2	87.2-88.7
F-D-0142A/D-0088B-WP	100x90x195	U	97.3-98.8	86.9-88.4	88.5	96.3-97.8	85.6-87.1
D-0142A/D-0089B-WP	100x100x195	U	98.7-100.2	98.5-100	90	97.7-99.2	97.2-98.7
F-D-0142A/D-0089B-WP	100x100x195	U	97.3-98.8	96.9-98.4	88.5	96.3-97.8	95.6-97.1
D-0142A/D-0150B-WP	100x110x195	U	98.7-100.2	108.5-110	90	97.7-99.2	107.2-108.7
D-0142A/D-0151B-WP	100x120x195	U	98.7-100.2	118.5-120	90	97.7-99.2	117.2-118.7
F-D-0142A/D-0151B-WP	100x120x195	U	97.3-98.8	116.9-118.4	88.5	96.3-97.8	115.6-117.1
